source read

TODO add lib to auto-read python lib, make plantuml file

plantuml graph

class graph

@startuml
class RequestMethods {
        __init__(headers)
        urlopen(method: str, url: str, body, headers, encode_multipart, **kw) -> BaseHTTPResposne
        request(method: str, url: str, body, fields, headers, json, **urlopen_kw) -> BaseHTTPResposne
        request_encode_url(method, url, fields, headers, **urlopen_kw) -> BaseHTTPResposne
        request_encode_body(method, url, fields, headers, encode_multipart: bool, **urlopen_kw) -> BaseHTTPResposne
}

class ContentDecoder {
        decompress(self, data: btyes) -> bytes
        flush(self) -> bytes
}

class DeflateDecoder {
        decompress(self, data: bytes) -> bytes
        flush(self) -> bytes
}

enum GzipDecoderState {
        FIRST_MEMBER
        OTHER_MEMBERS
        SWALLOW_DATA
}
class GzipDecoder {
        decompress(self, data: bytes) -> bytes
        flush(self) -> bytes
}

class BrotliDecoder {
        flush(self) -> bytes
}

class MultiDecoder {
        list[ContentDecoder] _decoders
        decompress(self, data: bytes) -> bytes
        flush(self) -> bytes
}

ContentDecoder <|-- DeflateDecoder
ContentDecoder <|-- GzipDecoder
ContentDecoder <|-- BrotliDecoder
ContentDecoder <|-- MultiDecoder

class BaseHTTPResposne {
        abstract data : property
        abstract url : property
        abstract closed : property
        abstract HTTPConnection connection : property

        get_redirect_location(self) -> Union[None, str, False]
        json() -> Any
        abstract stream(amt: Optional[int] decode_content: Optional[bool]) -> Iterator[bytes]
        abstract read(amt: Optional[int], decode_content: Optional[bool], cache_content: bool) -> bytes
        abstract read_chunked(self, amt: Optional[int], decode_content: Optional[bool]) -> Iterator[bytes]
        abstract release_conn(self) -> None
        abstract draion_conn(self) -> None
        abstract close(self) -> None

        _init_decoder(self) -> None
        _decode(self, data: bytes, decode_content: Optional[bool], flush_decoder: bool) -> bytes
        _flush_decoder(self) -> bytes
        readable(self) -> bool
        readinto(self, b: bytearray) -> int
        getheaders(self) -> List[Tuple[str, str]]
        getheader(self, name: str, default: Optional[str] = None) -> Optional[str]

        info(self) -> HTTPHeaderDict
        geturl(self) -> Optional[Union[str, Literal[False]]]
}

class HTTPResponse {
        data : property
        url: property
        connection : property

        release_conn(self) -> None
        draion_conn(self) -> None

        is_closed(self) -> bool
        tell(self) -> int
        _init_length(self, request_method: Optional[str]) -> Optional[int]
        _error_catcher(self) -> Generator(None, None, None) : contextmanager
        read(self, amt: Optional[int], decode_content: Optional[bool] = None, cache_content: bool = False) -> bytes
        stream(amt: Optional[int] decode_content: Optional[bool]) -> Iterator[bytes]
        classmethod from_httplib(ResponseCls, r: HttpLibHTTPResponse, **response_kw: Any) -> HTTPResponse

        close(self) -> None
        closed(self) -> bool :property
        fileno(self) -> int
        flush(self) -> None
        supports_chunked_read(self) -> bool
        _update_chunk_length(self) -> None
        _handle_chunk(self, amt: Optional[int]) -> bytes
        read_chunked(self, amt: Optional[int], decode_content: Optional[bool] = None) -> Generator[bytes, None, None]
        __iter__(self) -> Iterator[bytes]
}

BaseHTTPResposne <|-- HTTPResponse

@enduml

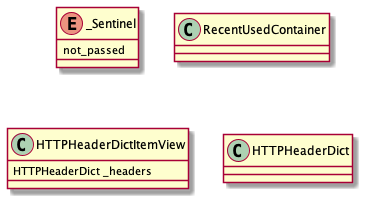

@startuml
enum _Sentinel {
        not_passed
}

class RecentUsedContainer {
}

class HTTPHeaderDictItemView {
        HTTPHeaderDict _headers
}
class HTTPHeaderDict {

}
@enduml

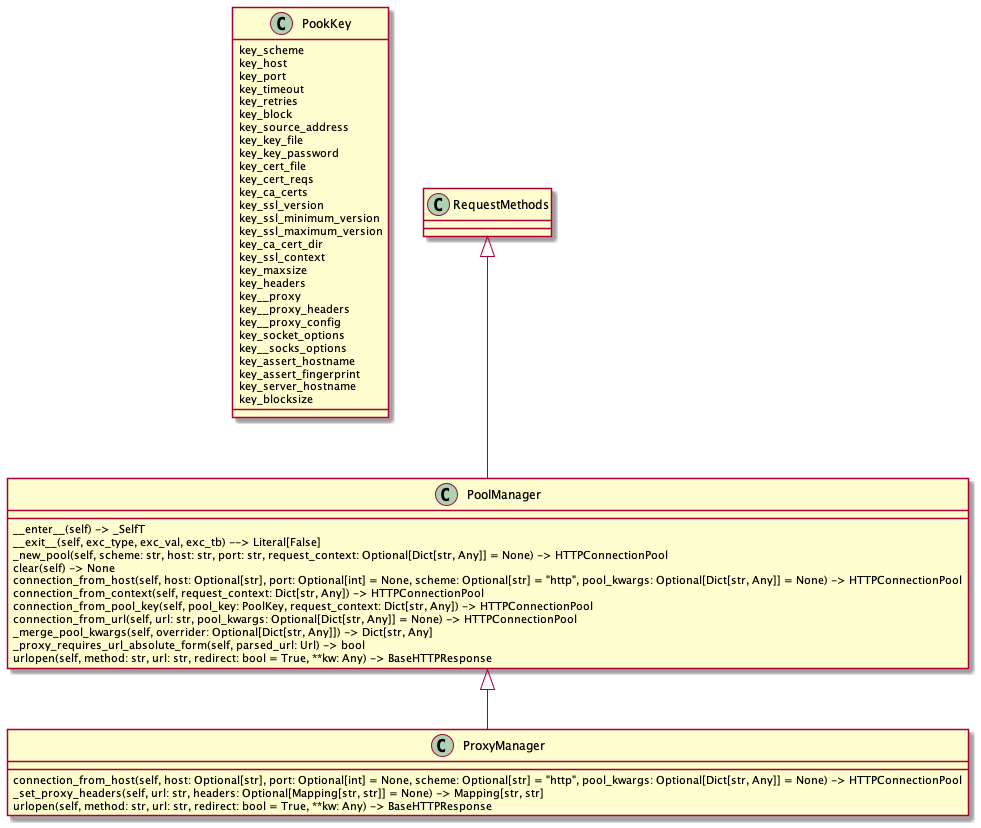

pool_manager

@startuml
class PookKey {
        key_scheme
        key_host
        key_port
        key_timeout
        key_retries
        key_block
        key_source_address
        key_key_file
        key_key_password
        key_cert_file
        key_cert_reqs
        key_ca_certs
        key_ssl_version
        key_ssl_minimum_version
        key_ssl_maximum_version
        key_ca_cert_dir
        key_ssl_context
        key_maxsize
        key_headers
        key__proxy
        key__proxy_headers
        key__proxy_config
        key_socket_options
        key__socks_options
        key_assert_hostname
        key_assert_fingerprint
        key_server_hostname
        key_blocksize
}

class PoolManager {
        __enter__(self) -> _SelfT
        __exit__(self, exc_type, exc_val, exc_tb) --> Literal[False]
        _new_pool(self, scheme: str, host: str, port: str, request_context: Optional[Dict[str, Any]] = None) -> HTTPConnectionPool
        clear(self) -> None
        connection_from_host(self, host: Optional[str], port: Optional[int] = None, scheme: Optional[str] = "http", pool_kwargs: Optional[Dict[str, Any]] = None) -> HTTPConnectionPool
        connection_from_context(self, request_context: Dict[str, Any]) -> HTTPConnectionPool
        connection_from_pool_key(self, pool_key: PoolKey, request_context: Dict[str, Any]) -> HTTPConnectionPool
        connection_from_url(self, url: str, pool_kwargs: Optional[Dict[str, Any]] = None) -> HTTPConnectionPool
        _merge_pool_kwargs(self, overrider: Optional[Dict[str, Any]]) -> Dict[str, Any]
        _proxy_requires_url_absolute_form(self, parsed_url: Url) -> bool
        urlopen(self, method: str, url: str, redirect: bool = True, **kw: Any) -> BaseHTTPResponse
}

class ProxyManager {
        connection_from_host(self, host: Optional[str], port: Optional[int] = None, scheme: Optional[str] = "http", pool_kwargs: Optional[Dict[str, Any]] = None) -> HTTPConnectionPool
        _set_proxy_headers(self, url: str, headers: Optional[Mapping[str, str]] = None) -> Mapping[str, str]
        urlopen(self, method: str, url: str, redirect: bool = True, **kw: Any) -> BaseHTTPResponse
}


RequestMethods <|-- PoolManager
PoolManager <|-- ProxyManager
@enduml

fields

class RequestField {
        _name
        _filename
        headers

        classmethod from_tuples(cls, fieldname: str, value ) -> RequestField
        _render_part(self, name: str, value) -> str
        _render_parts(self, header_parts: Union[Dict[str, str], Sequence[Tuple[str, str]]) -> str
        render_headers(self) -> str
        make_multipart(self, content_disposition: Optional[str] = None, content_type: Optional[str] = None, content_loation: Optional[str] = None) -> None
}

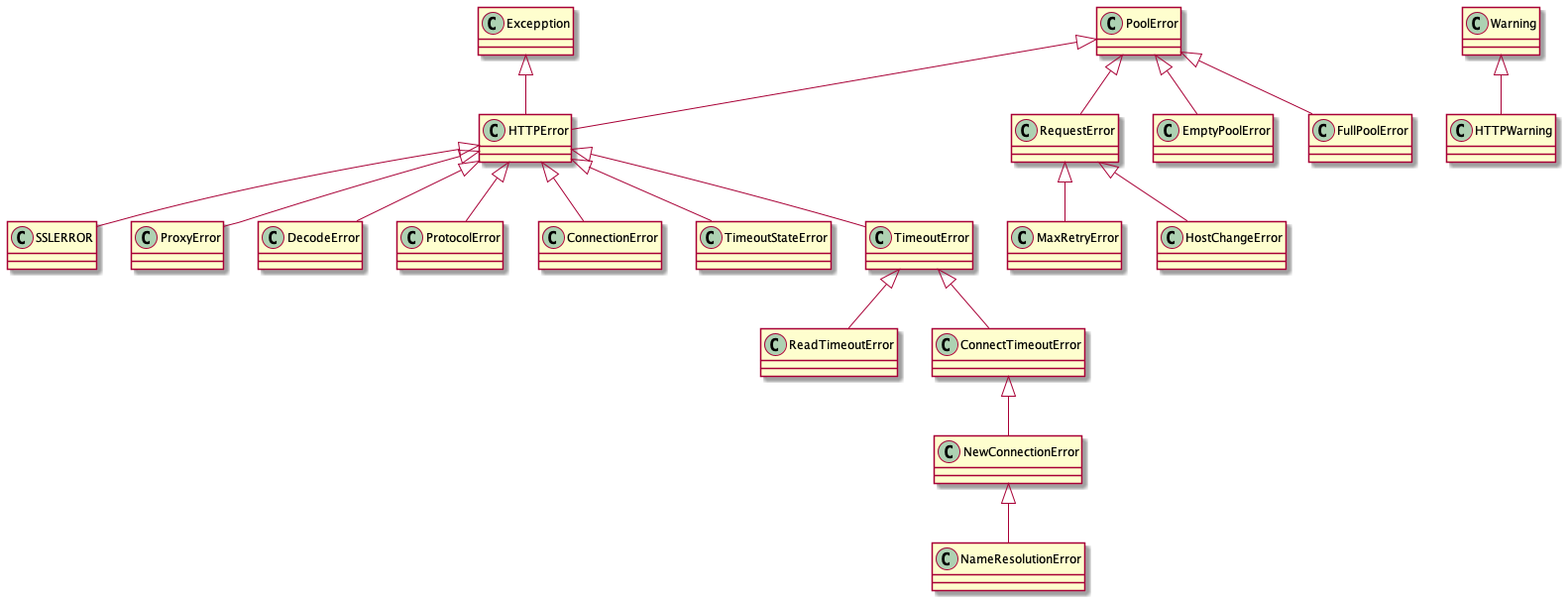

exceptions

@startuml
Excepption <|-- HTTPError
Warning <|-- HTTPWarning
PoolError <|-- HTTPError
PoolError <|-- RequestError
HTTPError <|-- SSLERROR
HTTPError <|-- ProxyError
HTTPError <|-- DecodeError
HTTPError <|-- ProtocolError
HTTPError <|-- ConnectionError
RequestError <|-- MaxRetryError
RequestError <|-- HostChangeError
HTTPError <|-- TimeoutStateError
HTTPError <|-- TimeoutError
TimeoutError <|-- ReadTimeoutError
TimeoutError <|-- ConnectTimeoutError
ConnectTimeoutError <|-- NewConnectionError
NewConnectionError <|-- NameResolutionError
PoolError <|-- EmptyPoolError
PoolError <|-- FullPoolError
@enduml

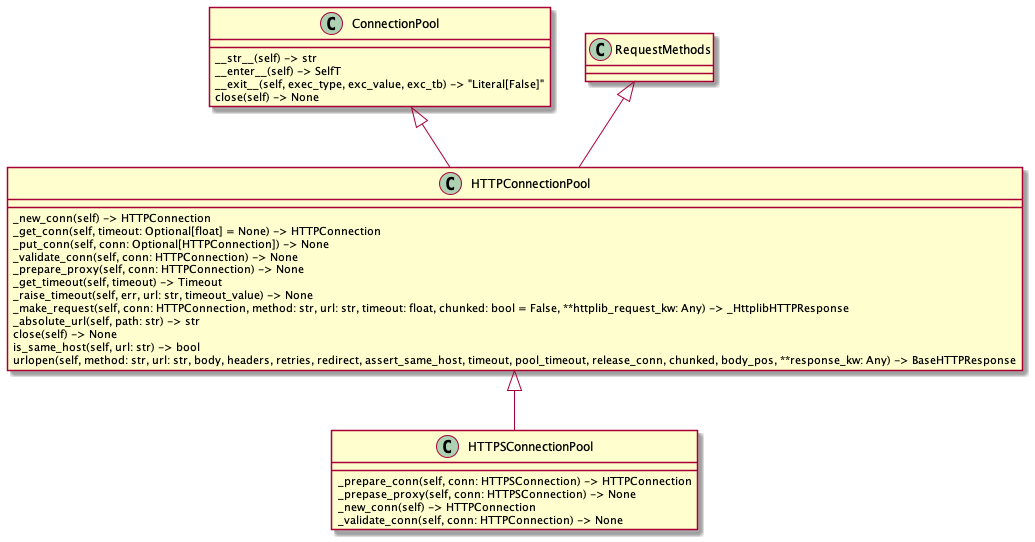

connection pool

@startuml
class ConnectionPool {
        __str__(self) -> str
        __enter__(self) -> SelfT
        __exit__(self, exec_type, exc_value, exc_tb) -> "Literal[False]"
        close(self) -> None
}
class HTTPConnectionPool {
        _new_conn(self) -> HTTPConnection
        _get_conn(self, timeout: Optional[float] = None) -> HTTPConnection
        _put_conn(self, conn: Optional[HTTPConnection]) -> None
        _validate_conn(self, conn: HTTPConnection) -> None
        _prepare_proxy(self, conn: HTTPConnection) -> None
        _get_timeout(self, timeout) -> Timeout
        _raise_timeout(self, err, url: str, timeout_value) -> None
        _make_request(self, conn: HTTPConnection, method: str, url: str, timeout: float, chunked: bool = False, **httplib_request_kw: Any) -> _HttplibHTTPResponse
        _absolute_url(self, path: str) -> str
        close(self) -> None
        is_same_host(self, url: str) -> bool
        urlopen(self, method: str, url: str, body, headers, retries, redirect, assert_same_host, timeout, pool_timeout, release_conn, chunked, body_pos, **response_kw: Any) -> BaseHTTPResponse
}

class HTTPSConnectionPool {
        _prepare_conn(self, conn: HTTPSConnection) -> HTTPConnection
        _prepase_proxy(self, conn: HTTPSConnection) -> None
        _new_conn(self) -> HTTPConnection
        _validate_conn(self, conn: HTTPConnection) -> None
}

ConnectionPool <|-- HTTPConnectionPool
RequestMethods <|-- HTTPConnectionPool
HTTPConnectionPool <|-- HTTPSConnectionPool
@enduml

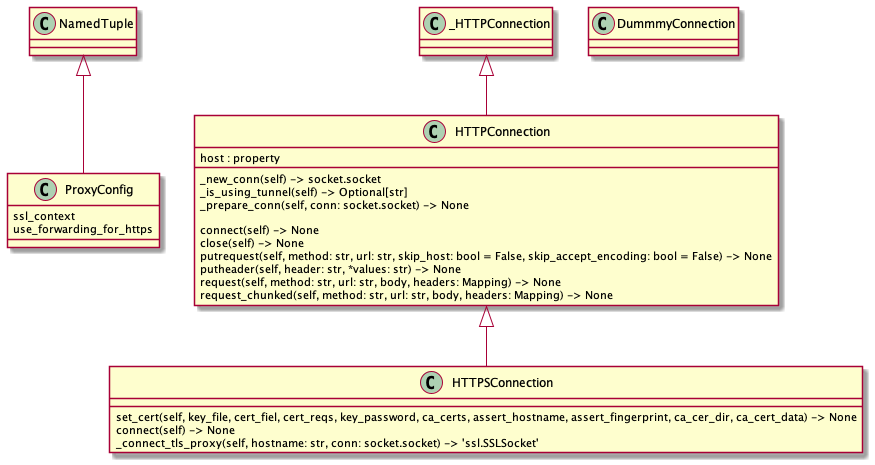

connection

@startuml
NamedTuple <|-- ProxyConfig
class ProxyConfig {
        ssl_context
        use_forwarding_for_https
}

_HTTPConnection <|-- HTTPConnection

class HTTPConnection {
        host : property
        _new_conn(self) -> socket.socket
        _is_using_tunnel(self) -> Optional[str]
        _prepare_conn(self, conn: socket.socket) -> None

        connect(self) -> None
        close(self) -> None
        putrequest(self, method: str, url: str, skip_host: bool = False, skip_accept_encoding: bool = False) -> None
        putheader(self, header: str, *values: str) -> None
        request(self, method: str, url: str, body, headers: Mapping) -> None
        request_chunked(self, method: str, url: str, body, headers: Mapping) -> None
}

HTTPConnection <|-- HTTPSConnection

class HTTPSConnection {
        set_cert(self, key_file, cert_fiel, cert_reqs, key_password, ca_certs, assert_hostname, assert_fingerprint, ca_cer_dir, ca_cert_data) -> None
        connect(self) -> None
        _connect_tls_proxy(self, hostname: str, conn: socket.socket) -> 'ssl.SSLSocket'
}

class DummmyConnection {
}
@enduml
